Meba breaker MBL7 DPN
| Rated Voltage | 230V;50/60HZ |
| Rated Current | 6A 10A 16A 20A 25A 32A 40A |
| Rated Breaking Capacity | 6kA |
| Trip Character | C Characteristic Curve |
| Max fuse that can be connect to | Max 100A gl/gG(>6kA) |
| Selection Grade | 3 |
| Working Enviroment Termperature | -5~+40°C |
| Case Protection Grade | IP40 |
| Electrical life | ≥8000times |

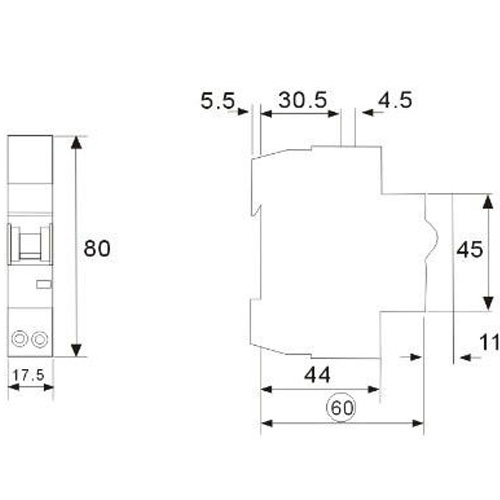

MACHANICAL PARAMETER
| The length of exposed plate | 45mm |
| Enclosure heitht | 80mm |
| Enclosure width | 17.5 (1P+N) |
| Mounting | According to IEC 35 mm DIN-Rail |
| Terminal | Connection of exaltation |
| Terminal block capacity | 1-6mm2 |
Meba breaker MBL7 DPN
- protecting against electrical leakage (residual current)
- 50Hz or 60Hz, rated voltage single-phase 240V, three phases 415V, rated current up to 40A
- cut off the power within the time of 0.1s automatically when the current exceeds the fixed value
- protect the un-frequent switch-over of the circuit under normal conditions
- conforms to IEC1009.1 and GB16917.1.
