Circuit Breaker

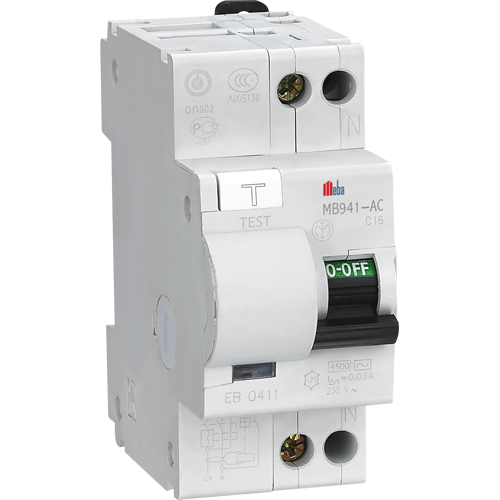

Meba residual current circuit breaker with overload protection rccb rcbo MB941
Product Description
Meba residual current circuit breaker with overload protection rccb rcbo MB941 is the latest developed RCBO(residual current circuit breaker with overload protection), the function include leakage, overload and short circuit current. additional protection against direct contact(thanks to In=30A)Meba residual current circuit breaker with overload protection rccb rcbo MB941
Technical Data
| No. of Poles | Type/Class | Nominal Fault Current In mA | Nominal Current In A | Order Details Type Code |
| Icn=4.5kA,B characterisics | ||||
| 1P+N | AC | 30 | 10 | MB941 B10-30MA AC |
| 16 | MB941 B16-30MA AC | |||
| 20 | MB941 B20-30MA AC | |||
| 25 | MB941 B25-30MA AC | |||
| Icn=4.5kA,C characterisics | ||||
| 1P+N | AC | 30 | 10 | MB941 C10-30MA AC |
| 16 | MB941 C16-30MA AC | |||
| 20 | MB941 C20-30MA AC | |||
| 25 | MB941 C25-30MA AC | |||
| Icn=6kA,B characterisics | ||||
| 1P+N | AC | 30 | 10 | MB951 B10-30MA AC |
| 16 | MB951 B16-30MA AC | |||
| 20 | MB951 B20-30MA AC | |||
| 25 | MB951 B25-30MA AC | |||
| Icn=6kA,C characteristics | ||||
| 1P+N | AC | 30 | 10 | MB951 C10-30MA AC |
| 16 | MB951 C16-30MA AC | |||
| 20 | MB951 C20-30MA AC | |||
| 25 | MB951 C25-30MA AC | |||
Meba residual current circuit breaker with overload protection rccb rcbo MB941
is the latest developed RCBO(residual current circuit breaker with overload protection), the function include leakage, overload and short circuit current. additional protection against direct contact(thanks to In=30A)
