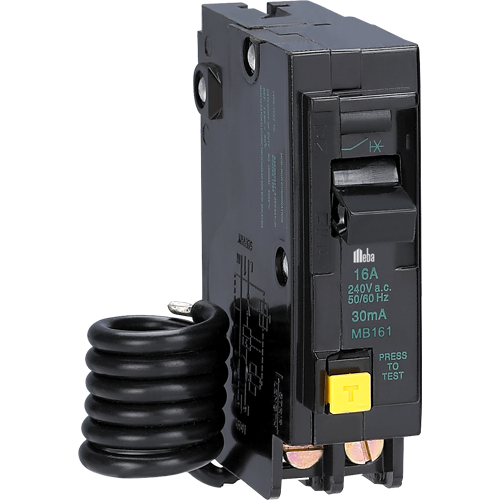

Meba residual current circuit breakers with overcurrent protection RCBOs MB161
Product Description
Meba residual current circuit breakers with overcurrent protection RCBOs MB161 Provides protection against earth fault/leakage current, short-circuit and overload High short-circuit capacity Provides complementary protection against direct contact by human bodyMeba residual current circuit breakers with overcurrent protection RCBOs MB161
Technical Data
– Type: Electro-magnetic type
– Residual current characteristics: AC
– Pole NO.: 1P+N
– Tripping curve: B, C
– Rated short-circuit capacity: 10kA
– Rated current(A): 6, 10, 16, 20, 25, 32
– Rated voltage: 230/240V AC
– Rated frequency: 50/60Hz
– Rated residual operating current(mA): 0.03, 0.1
– Tripping duration: instantaneous ≤0.1s
– Electro-mechanical endurance: 4000 cycles
– Connection terminal: pillar terminal with clamp
Meba residual current circuit breakers with overcurrent protection RCBOs MB161
Construction and Feature
– Provides protection against earth fault/leakage current, short-circuit and overload
– High short-circuit capacity
– Provides complementary protection against direct contact by human body
– Effectively protects electric equipmet against insulating failure
– Contact position indication
– Provides protection against over-voltage
– Provides comprehensive protection to household and commercial distribution systems
