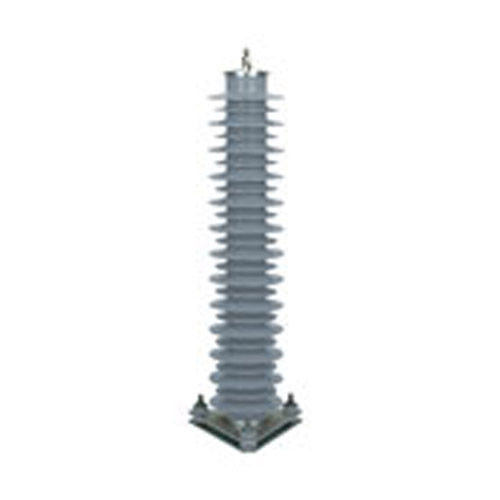

Meba YH10W, Y10W, Y10C Surge Arrester
Product Description
Meba YH10W, Y10W, Y10C Surge ArresterMeba JHY16-110KV YH10W, Y10W, Y10C Surge Arrester
| Rated voltage(kv) | Nominal system voltage | MCOV(KV) | Lightning Impulse | Line discharge class(A) | Long impulse withstand current 2000us | Lightning Impuise withstand BIL(KV) | Creepage(mm)distance | Standard |
| 100 | 100KV | 78 | 260 | 2 | 800A | 100 | 3300 | IEC60099-4 |
Meba JHY20-220KV YH10W, Y10W, Y10C Surge Arreste
| Destinatin | Code No. | Rated Voltage (kv) | System Volage | MCOV | 1mA Reference Voltage at imA Dc | Current impulse residual Voltage | Long impulse withstand current 2000μs | 4/10μs High current impulse withstand | Reference Voltage at ImA Dc | ||
| 8/4μs Steep current impulse | 8/20μs Lighting current impulse | 30/60μs Switching current impulse | |||||||||
| Substation | Y10W-200/520 | 200 | 220 | 156 | 290 | 582 | 520 | 442 | 600 | 100 | 50 |
Meba JHY21-35KV YH10W, Y10W, Y10C Surge Arrester
| Destinatin | Code No. | Rated Voltage (kv) | System Volage | MCOV | 1mA Reference Voltage at imA Dc | Current impulse residual Voltage | Long impulse withstand current 2000μs | 4/10μs High current impulse withstand | Reference Voltage at ImA Dc | ||
| 8/4μs Steep current impulse | 8/20μs Lighting current impulse | 30/60μs Switching current impulse | |||||||||
| Substation | Y5WZ-42/134 | 42 | 35 | 23 | 73 | 154 | 134 | 114 | 150 | 65 | 50 |
Meba JHY22-35KV YH10W, Y10W, Y10C Surge Arrester
| Destinatin | Code No. | Rated Voltage (kv) | System Volage | MCOV | 1mA Reference Voltage at imA Dc | Current impulse residual Voltage | Long impulse withstand current 2000μs | 4/10μs High current impulse withstand | Reference Voltage at ImA Dc | ||
| 8/4μs Steep current impulse | 8/20μs Lighting current impulse | 30/60μs Switching current impulse | |||||||||
| Substation | HY5WZ-42/134 | 42 | 35 | 23 | 73 | 154 | 134 | 114 | 150 | 65 | 50 |
Meba JHY23-110KV YH10W, Y10W, Y10C Surge Arrester
| Destinatin | Code No. | Rated Voltage (kv) | System Volage | MCOV | 1mA Reference Voltage at imA Dc | Current impulse residual Voltage | Long impulse withstand current 2000μs | 4/10μs High current impulse withstand | Reference Voltage at ImA Dc | ||
| 8/4μs Steep current impulse | 8/20μs Lighting current impulse | 30/60μs Switching current impulse | |||||||||
| Substation | Y5W-100/260 | 100 | 110 | 78 | 145 | 291 | 260 | 221 | 400 | 65 | 50 |
| Y5W-102/266 | 102 | 110 | 79.6 | 148 | 297 | 266 | 226 | ||||
| Y5W-108/281 | 108 | 110 | 84 | 157 | 315 | 281 | 239 | ||||
| Y10W-100/260 | 100 | 110 | 78 | 145 | 291 | 260 | 221 | 600 | 100 | 50 | |
Meba JHY24-66KV YH10W, Y10W, Y10C Surge Arrester
| Destinatin | Code No. | Rated Voltage (kv) | System Volage | MCOV | 1mA Reference Voltage at imA Dc | Current impulse residual Voltage | Long impulse withstand current 2000μs | 4/10μs High current impulse withstand | Reference Voltage at ImA Dc | ||
| 8/4μs Steep current impulse | 8/20μs Lighting current impulse | 30/60μs Switching current impulse | |||||||||
| Substation | HY5W-75/215 | 75 | 66 | 60 | 123 | 248 | 215 | 183 | 400 | 65 | 50 |
| HY5W-90/224 | 90 | 66 | 72.5 | 130 | 258 | 224 | 190 | ||||
| HY10W-75/250 | 75 | 66 | 60 | 127 | 288 | 250 | 213 | 600 | 100 | 50 | |
